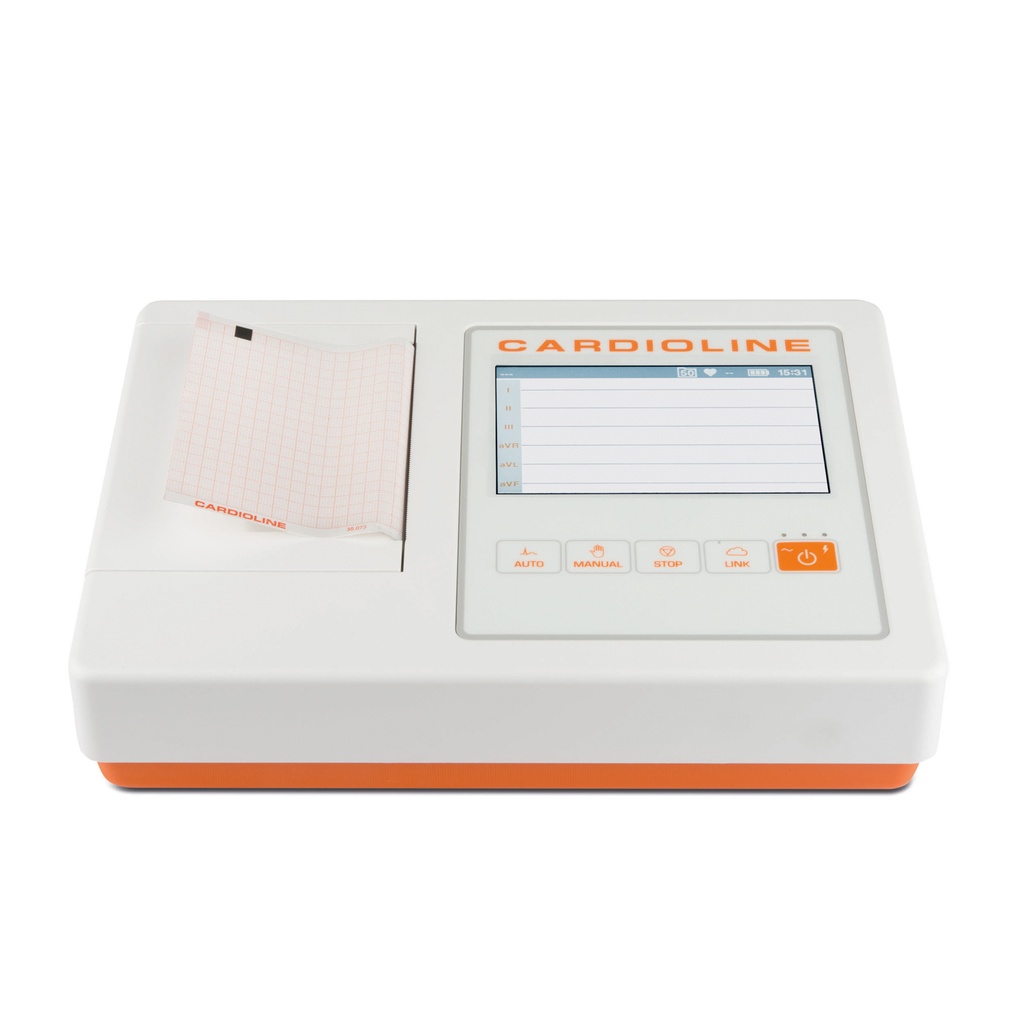

ECG100L is a 12-lead 6 channel fully diagnostic electrocardiograph which displays, acquires, prints and stores ECG tracings for your patients.
It features a 5” colour touchscreen display, from which all operations can be easily performed. A smart user interface guides the user through the different steps necessary to acquire the electrocardiogram. Various messages on the screen inform the user of the ongoing operations and will signal a warning in the event of errors (for example in case of lead fail).
The ECG EasyApp (SOLD SEPARATELY) has been designed to easily allow you to handle a patient ECGs.
Features:
- 5 '' Color Touch Screen
- 12-Lead 6 Channel ECG

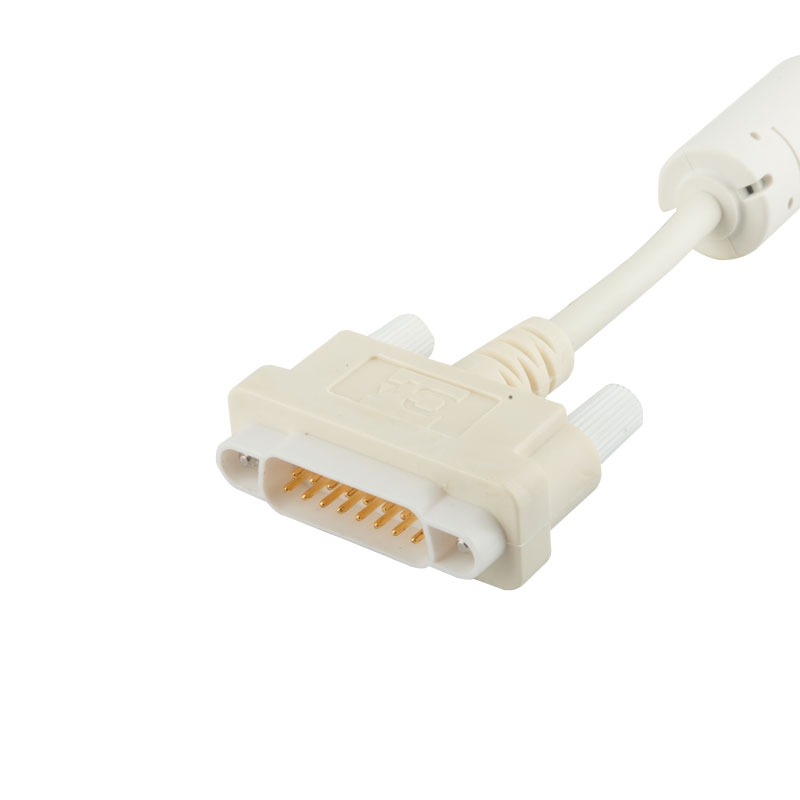

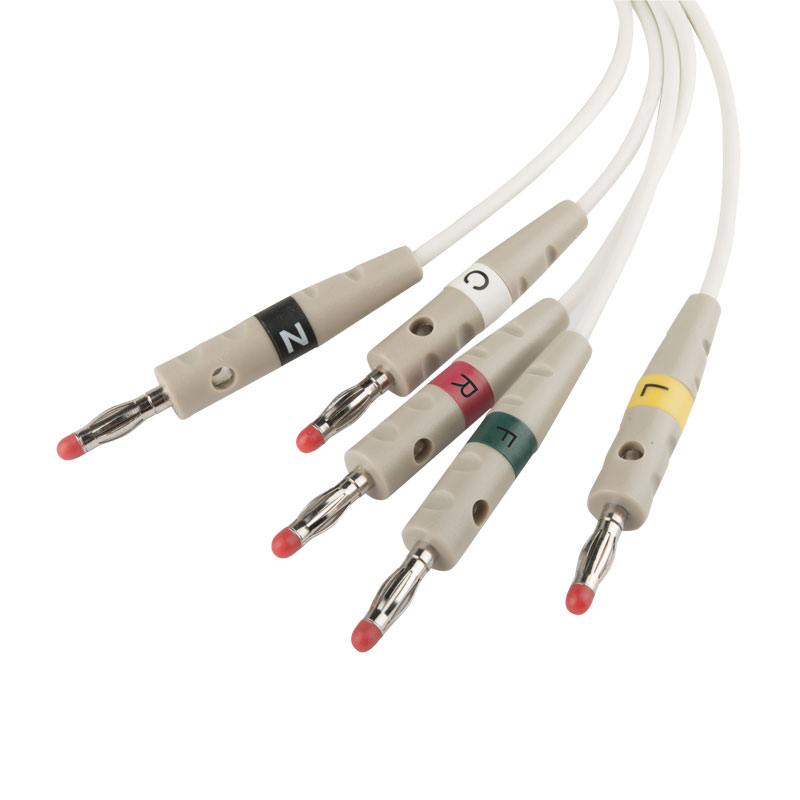

- 5-pin Patient Cable
- Sensitivity: 5, 10, 20 mm / mV
- 4 writing speeds: 5, 10, 25, 50 mm / s
- 50 ECG memory locations
- Battery or mains operated
- Printing formats: Standard or Cabrera 3, 3+1, 3+3 or 6 channels in automatic mode and 3 or 6 channels rhythm strip printing
- 100 mm wide paper roll
- Dimensions (mm): L 285 x W 204 x H 65
- Weight: approx 1.85 kg
- EasyApp (additioal software/sold separately)
